High-Power Bi-Directional Amplifier Modules

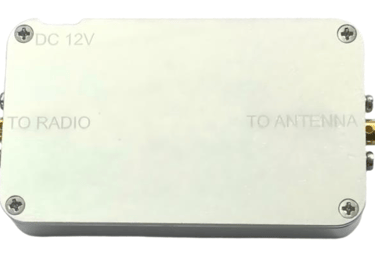

SWMB-0908A

Core Spec: 900-930 MHz | 8W

A 915MHz bidirectional power amplifier developed for 900-930MHz wireless data and video transmission. Features 8W (39dBm) max output power (P1dB) and 20dB Tx gain. Supports TDD duplex mode with automatic switching and accepts a wide 12-24V power supply.

Synwave’s SWMB series offers turnkey RF front-end solutions designed for mission-critical wireless communication. Covering key frequency bands from 900 MHz to 5.8 GHz , our TDD-optimized modules deliver up to 8 Watts of saturated output power with superior linearity and noise performance. Engineered for UAV video transmission, emergency comms, and perimeter security, Synwave modules ensure stable, long-range connectivity in complex electromagnetic environments.

SWMB-1207A

Core Spec: 1170-1280 MHz | 7W

A 1.2GHz bidirectional power amplifier utilizing single-carrier modulation technology. Operating frequency range is 1170-1280 MHz with 7W max output power (P1dB). Provides 20dB Tx gain and high linearity (32dBm linear power) for extended communication distance.

SWMB-1407A

Core Spec: 420-1470 MHz | 7W

Specifically developed for 1.4GHz (1420-1470 MHz) wireless data and video transmission applications. Delivers 7W max output power with 20dB Tx gain and 19dB Rx gain. Designed for TDD mode with a fast Tx/Rx switch time delay of <1μs.

SWMB-2406A

Core Spec: 2400-2500 MHz | 6W

A 2.4GHz bidirectional amplifier for the 2400-2500 MHz band. Offers 6W max output power (P1dB) and 21dB Tx gain. Supports 802.11g / OFDM 64QAM modulation with excellent linearity (EVM <5% @ 32dBm) and strong anti-interference capabilities.

SWMB-5808A

Core Spec: 5700-5900 MHz | 8W

High-power bidirectional amplifier for 5700-5900 MHz video transmission applications. Features 8W max output power (P1dB) and 18dB Tx gain. Provides high receive sensitivity with 21dB Rx gain and a 3.0dB noise figure
